Mini pc computer intel co

Highly reliable, fanless, noise-free, energy efficient, Industrial Fanless Rugged Mini BOX PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.


EGLOBAL Industrial Fanless Rugged Mini BOX PC series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Rugged PCs ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
Main advantages:

Small size: all EGLOBAL Industrial Fanless Rugged Mini BOX PC are smaller than A4 paper, some of them only 4.5 inch size 234*150*45MM, just like the HDD sized using it traditional fat computers.
Durability: all those EGLOBAL Industrial Fanless Rugged Mini BOX PC are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers; the rugged cabinet can take extreme pressure and temperatures;
Low power: all the EGLOBAL Industrial Fanless Rugged Mini BOX PC using 12V power supply, most of them power consumption 15W only, compare to 150W traditional pc's consumption, it helps saving more than 80% energy;
Universal performance: EGLOBAL Industrial Fanless Rugged Mini BOX PC compatible with almost all popular operating systems, such as Windows, Linux, fulfill all kind requirement for different environment.

What can this Industrial Fanless Rugged Mini BOX PC do?

Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games;
Industrial fields: Fit for CCTV, POS, Kiosk, ATM, Terminal, etc.

Industrial Fanless Rugged Mini BOX PCSpecifications:

Basic Information:
CPU	Onboard Intel Core i5-6360u
TDP	15W
Motherboard	14.5 x 14.7 cm
BIOS	American Megatrends Inc. 5.6.5
Chipset	Intel Sunrise Point-LP, Intel Skylake-U
Memory	2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB DDR3L 1333/1600, LPDDR3 1333/1600
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	Intel Skylake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Network	Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN
Video	Intel(R) Iris(R) Graphics 540

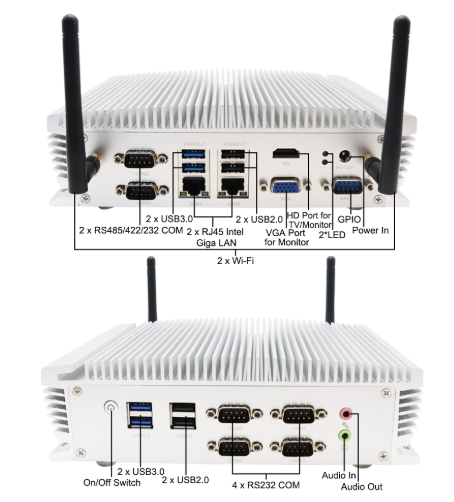

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	2 x LED
USB	4 x USB2.0, 4 x USB3.0
Display	1 x VGA, 1 x HDMI
LAN	2 x RJ45 Intel Giga LAN
COM	6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS
SIM	1 x embedded SIM card slot onboard
GPIO	1 x GPIO
Audio	1 x MIC, 1 x SPK
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G module
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	-20/+75 Centigrade
Storage Temperature	-40/+80 Centigrade
Relative Humidity	0%~90% (non-condensing)
Product Dimension & Details
Size	213*255*66mm
Weight	Net 1.6kg, Gross 2.5kg
Shell	Silver color aluminum alloy(any customized color for bulk order)
Mounting	4 Mounting holes on case
Cooling Mode	Fanless
Functions	AWAL, Wake On LAN, RTC
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
