HDMI digital to analog au

Features:

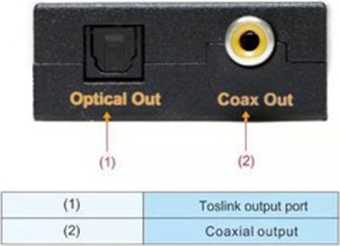

• One ways of HDMI signal input convert to one ways of optical fiber signal output and one ways coaxial signal output;
• Digital audio output format support: LPCM 2.0 / DTS / Dolby-AC3;
• The highest support 192 KHz sampling rate;
• Used the optical fiber cable loss less the 0.2 Db/m, output distance is up to 30m;
• Used the standard coaxial cable output can be up to 10m;
• Installs in minutes.

Specifications:

Connection drawing

1. The HDMI audio extractor Input port through the HDMI cable connected to HDMI source devices.
2. The HDMI audio extractor output port through the optical fiber cable or coaxial coble connected to the optical fiber signal receiver or coaxial signal receiver (such os AV amplifier and so on).
3. Connect DC 5.5mm coble to device DC 5V input port. And connect the USB port to standard USB(Type A) power interface.
