Fanless Industrial Mini C

SKU
G12
main product photo
As low as 31 954,90 ₴
В наличии
Осталось всего %1
  • Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, works as long as 24 hours.
  • High-end Industrial PC less than 1% defective rate, super long lifetime.
  • 2x Intel Gigabit RJ45 LANs, 2xDB9 COM - rich interfaces for different types of equipment.
  • One embedded SIM card slot onboard for 3G/4G Wi-Fi.
  • Support VGA + HDMI dual display output synchronously.
  • Support Watchdog, AWAL, RTC, WOL, PXE and Reset functions.
Notify me when the price drops
Fanless Industrial Mini Computer G12 Intel i7 DDR4, SSD, M.2, RS232, 2xRJ45, VGA, HDMI, WiFi, BT is available to buy in increments of 1
Категории: Windows mini PC, Промышленные ПК, Промышленность

Бесплатная доставка
При заказе от 100 €

Возврат в течении 14 дней
По любой причине

Безопасная оплата
100% безопасные платежи

Поддержка 24/7
Выделенная поддержка

Hightlights

  • Optional Intel 4/6/7/8/10/12th Gen Core i3/i5/i7 CPU.
  • 2 x RJ45 Intel Giga LAN + 2 x DB9 RS232 COM.
  • Support VGA + HDMI 1.4 dual display output synchronously.
  • One embedded SIM card slot onboard for 3G/4G Wi-Fi.
  • Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.
  • Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
  • Low consumption TDP only 28W and can be mounted on the wall.
  • Support AWAL, Wake On LAN, Watchdog, RTC functions.

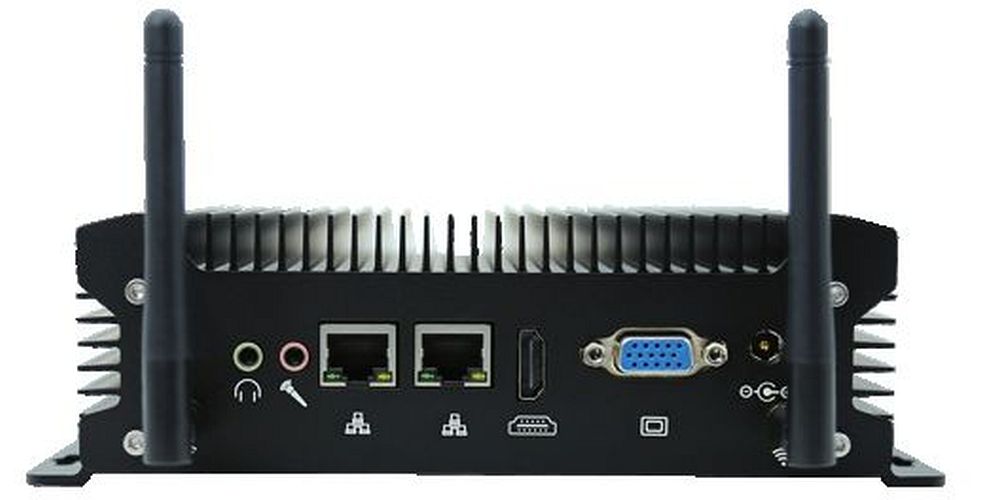

Fanless Industrial Mini Computer G12 Intel i7 DDR4, SSD, M.2, RS232, 2xRJ45, VGA, HDMI, WiFi, BT | Back View Fanless Industrial Mini Computer G12 Intel i7 DDR4, SSD, M.2, RS232, 2xRJ45, VGA, HDMI, WiFi, BT | Front View
Fanless Industrial Mini Computer G12 Intel i7 DDR4, SSD, M.2, RS232, 2xRJ45, VGA, HDMI, WiFi, BT | Bottom View Fanless Industrial Mini Computer G12 Intel i7 DDR4, SSD, M.2, RS232, 2xRJ45, VGA, HDMI, WiFi, BT | Inside View

Specification:

Basic Information:
CPU Onboard Intel Core i5-4278U / i7-4578U / i3-6157U / i5-7287U / i7-8550U / i3-1215U / i5-1235U / i5-1245U
TDP 10-30W
Motherboard 12 x 12 cm
Chipset Intel Sunrise Point-LP, Intel Skylake-U, Intel Kaby Lake, Intel Alder Lake
Memory
  • 4th: 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB
  • 6th/7th: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB
  • 8th/10th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB
  • 12th: 1 x SO-DIMM DDR5 Slot, Support 8GB/16GB/32GB/64GB
OS Windows 7, WES 7, POSReady (only Gen 4th)/Windows 8/Windows 10/Windows 11, WES 8/10/11, IoT, Linux
PXE YES
Audio Intel High Definition Audio and USB Audio and HID
Network 2 x Onboard Realtek RTL8111 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Video Refer to the above CPU

Wi-Fi:
Module
  • 1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module
  • 1 x mini PCIE-half/full port for 3G/4G module
Antenna 2 x inner RF cables and 2 x external antennas

Power and Working Environment:
Input 100-240V AC/50-60Hz
Output DC+12V~+19V, recommend 12V/5A
Operating Temperature -20°C/+60°C
Storage Temperature -30°C/+70°C
Relative Humidity 10%~90%@30°C(non-condensing)

Input/output port:
Switch 1 x Power On/Off Switch
Power 1 x 12V-19V DC In
USB 4 x USB2.0, 4 x USB3.0
Display 1 x VGA, 1 x HDMI 1.4
LAN 2 x RJ45 Giga LAN
COM 2 x DB9 232 COM
Audio 1 x MIC, 1 x SPK

Storage:
MSATA
  • 4th: 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
  • 6th/7th/8th/10th/12th: 1 x M.2 slot for NVMe/NGFF 2280 SSD
SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Product Dimension & Details:
Size 193.9*127*57.2mm
Weight Net 1kg, Gross 1.5kg
Shell Black color aluminum alloy(any customized color for bulk order)
Mounting 4 mounting holes one the case baseplate
Cooling Mode Fanless
Functions AWAL, Wake On LAN, RTC, Watchdog

Package Content:
Standard
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 2xWi-Fi antennas,
  • 1xHDMI cable,
  • 1xOnline User Manual.
Optional
  • 1xPaper User Manual,
  • 1xLong Screws Bag.

Optional CPU
G12-4278U CPU: Onboard Intel Haswell 22nm CPU Intel Core i5-4278U 2.6GHz Max 3.1GHz (Turbo boost Technology) Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 5100.
G12-4578U CPU: Onboard Intel Haswell 22nm CPU Intel Core i7-4578U 3.0GHz Max 3.5GHz (Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Graphics 5100.
G12-6157U CPU: Onboard Intel Skylake 14nm CPU Intel Core i3-6157U 2.4GHz (Turbo boost Technology) Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 550.
G12-7287U CPU: Onboard Intel Kaby Lake 14nm CPU Intel Core i5-7287U 3.3GHz Max 3.7GHz (Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Plus Graphics 650.
G12-8550U CPU: Onboard Intel Kaby Lake 14nm CPU Intel Core i7-8550U 1.8GHz Max 4.0GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 15W Intel® UHD Graphics 620.
G12-1215U CPU: Onboard Intel Alder Lake 7nm CPU Intel Core i3-1215U 1.2GHz up to 4.4GHz (Turbo boost Technology) 6 Cores 8 Threads 10MB cache TDP 15W Intel® Iris® Xe Graphics.
G12-1235U CPU: Onboard Intel Alder Lake 7nm CPU Intel Core i5-1235U 1.3GHz up to 4.4GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel® Iris® Xe Graphics.
G12-1245U CPU: Onboard Intel Alder Lake 7nm CPU Intel Core i5-1245U 1.6GHz up to 4.4GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel® Iris® Xe Graphics.

Fanless Industrial Mini PC VGA + HD 1.4 dual display 2 x RJ45 Intel Giga LAN 2 x DB9 RS232 COM

2 x RJ45 Giga LAN Wi-Fi/Bluetooth module OR 3G/4G module 4x USB2.0 4x USB3.0 Work as long as 24 hours 2 x DB9 RS232 COM Fanless no cooling Fan Completely sealed and dustproof VGA + HD 1.4 dual display

Specifications CPU Onboard Intel Core I5-4278U / I7-4578U /13-6157U / i5-7287U Memory 4th: 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB 6th/7th/8th: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/ 16GB/32GB 8th/1 Oth: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/ 32GB/64GB os Windows 7/Windows 8/Windows 10, WES 7/10, Linux Storage 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s Wi-Fi 1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-half/full port for 3G/4G module 2 x inner RF cables and 2 x external antennas Size 193.9*127*57.2mm Functions AWAL, Wake On LAN, RTC, Watchdog I/O 1 x Power On/Off Switch, 1 x 12V-19V DC In, 4 x USB2.0, 4 x USB3.0, 1 x VGA, 1 x HD 1.4, 2 x RJ45 Giga LAN, 2 x DB9 RS232 COM, 1 x MIC, 1 x SPK

Support Multiple Operating Systems: Windows, Linux, pfsense, :::ROS, ubuntu

Optional Intel 4/6/7/8/10th Gen Core I3/I5/I7 CPU

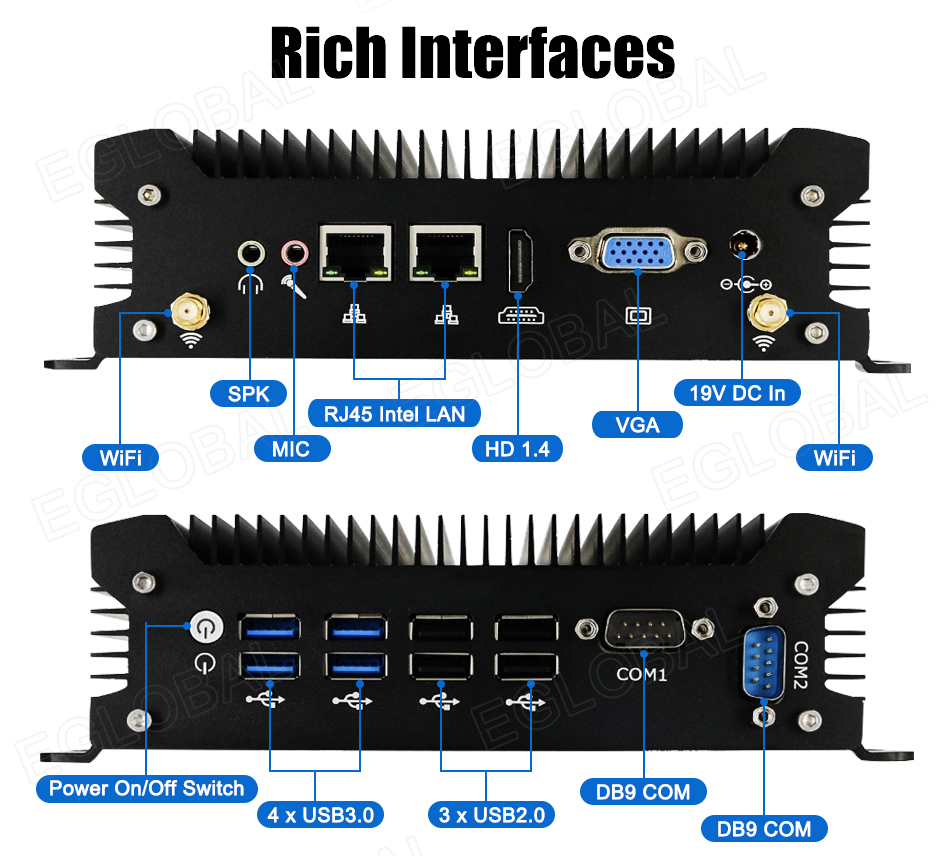

Rich Interfaces 4xUSB3.0 3xUSB2.0 DB9 COM1 DB9 COM2 WiFi SPK MIC RJ45 Intel LAN HD 1.4 VGA 19V DC In WiFi Power On/Off Switch

COM Interface Standard RS-232 Medical control equipment Other Receipt printer POS machine Bar code scanner Access control system Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Modulation

Product Dimension 57.2mm 127mm 193.9mm 183mm 20mm 73mm

High-Strength Aluminum Body The body is manufactured by high-strength aluminum alloy cold rolling process with good anti-interference, abrasion resistance, pressure resistance and high and low temperature resistance (-20C to 60C). Can operate stably in all kinds of harsh environments. Good anti-interference performance Fanless no noisy High and low temperature resistance

Industrial-Grade Dust-Proof And Corrosion-Resistant The fully enclosed aluminum alloy body can effectively prevent industrial dust from entering the machine, prevent hardware failure and prolong the machine life. Completely sealed and dustproof Corrosion resistant

Dual Display HD 1.4+VGA dual display output, enable to connect two monitors simultaneously. VGA & HD 1.4

4G/WIFI Module Can be equipped with 3G/4G communication or Wi-Fi connection module, and embedded with a SIM card slot, remote wireless communication more convenient, aliminating wiring troubles. Mini PCIE-Full Port for 4G WiFi module SIM Card Slot 4G Module SIM Network Support Wi-Fi

Installation The base cover with 4 x holes for hung on walls optional long screws PC can be mounted to wall. Just need 4 screws

Application Automatic equipment Multimedia classroom Digital signage system Internet of things system Large supermarket Gate access control system

Functions Wake-On-LAN Turn on your mini PC from anywhere in the world by a network message. Preboot Execution Environment Intall operating system on a series of PXE-enabled Mini PC as clients through Internet. PXE Booting PXE Booting PXE Booting PXE Booting Client 1 Client 2 Client 3 Client 4

Digital Signage Auto Power On for building scheduled tasks and events on the Mini PC. PXE for assembling software on the Mini PC from a network. WOL for awakening the Mini PC remotely from a LAN port. RTC(Real Time Clock) provides an accurate date and time, in addition to allowing a computer to regulate the timing and speed of all its functions.

100% Object shooting

Accessories Picture of outer packing for reference only is subjected to change without notice. black or white Dual external wifi antennas color delivery as per the product case optional Long screws SATA cable Power adapter Power cable

ПроизводительEglobal
EAN штрихкод2437452614499
ВидеокартаIntel® UHD Graphics
HDDSSD SATA 2.5", SSD mSATA, M.2 NVMe
Тип подключенияБеспроводный + проводный
BluetoothЕсть
I/O

Switch

1 x Power On/Off Switch

Power

1 x 12V-19V DC In

USB

4 x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI 1.4

LAN

2 x RJ45 Giga LAN

COM

2 x DB9 232 COM

Audio

1 x MIC, 1 x SPK
Тип батареиNo
ОСWindows 10, Linux
Поддерживаемые языкиMultilanguage
Адаптер / блок питанияDC 12V/5A
Комплектация
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 2xWi-Fi antennas,
  • 1xHDMI cable,
  • 1xUser Manual,
ЦветЧерный
МатериалМеталл
Размер193.9*127*57.2 mm
Вес1.500000
